$US 5,495.00

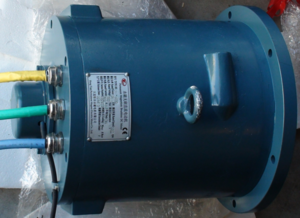

This 100kW AC drive packages includes a purpose built EV inverter and a 3 phase permanent magnet motor. The motor is rated for 35kW continuous, with 100kW peaks for up to 10 sec.
The Scott Drive AC Inverter includes built in DC contactors and precharge circuitry as well as 3 low power auxiliary motor drives for powering and controlling power steering and air conditioning pumps.
Specifications:
Pack voltages 120V to 400V DC
Power rating 100kW
Max DC current 600A
Inverter Dimensions: 380mm L x 300mm W x 105mm H
Motor Dimensions: 300mm diameter (flange 360mm diameter)
